Proventia
Power batteries
Safe & reliable lto batteries
Proventia Power Batteries are based on safe and reliable lithium titanate oxide (LTO) technology.
Choosing LTO technology ensures unparalleled safety, stability, and reliability in harsh environments of off-road machinery. Proventia offers both high-voltage as well as low-voltage battery systems.
Advantages with
LTO technology
High Discharge Rates, Longevity, and Versatility for Extreme Conditions
LTO batteries feature high discharge rates (C-rates up to 10-40), which means that they offer rapid battery charging and discharging. Despite being able to support high-power demands with a lower capacity than other technologies, LTO batteries have a 10 to 20 times longer battery lifetime than other lithium battery types.
They operate effectively across a wide temperature range, from -30..+60°C. All this while offering enhanced safety and stability under extreme conditions. This versatility makes them ideal for off-road machinery applications. In addition, we pack them in the most robust case, which provides resilience against mechanical loads, dust and moisture.
HIGH-voltage LTO battery systems (<1000V)
Modular high-voltage batteries can be customized in capacity and voltage, making them suitable for a wide range of applications. Our high-voltage batteries are engineered for durability and perform excellently in extreme temperatures.
Applications for HIGH-voltage batteries
Hybrid Systems
High-voltage batteries are perfect for peak power management in high-voltage hybrid systems. Batteries enable the use of smaller engines and thereby decrease fuel consumption over the machine’s lifetime, leading to lower CO2 emissions and reduced Scope 3 downstream emissions. Less CO2 emissions also mean lower overall ownership costs.
Fuel Cell applications
In fuel cell applications, Proventia batteries provide rapid load response, enhancing the efficiency and lifespan of the fuel cell. The batteries also enable energy recuperation.
Full electric applications
For full electric applications where machine uptime and constant operation are important, batteries must be able to withstand repetitive fast charging. Our batteries can be fully charged over a short break instead of requiring slow overnight charging, while still maintaining the excellent long lifetime of the technology.
Example of high-voltage systems

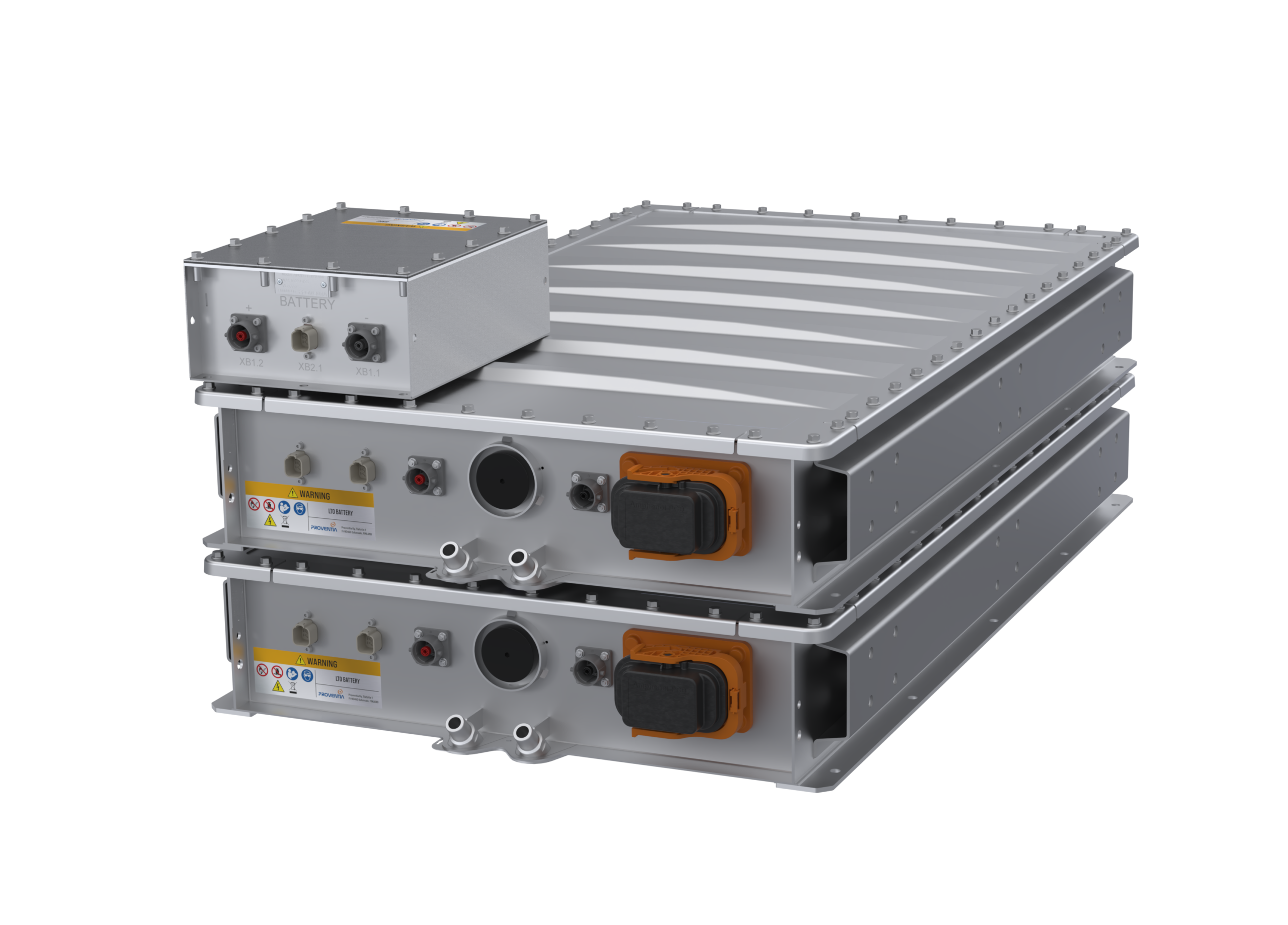

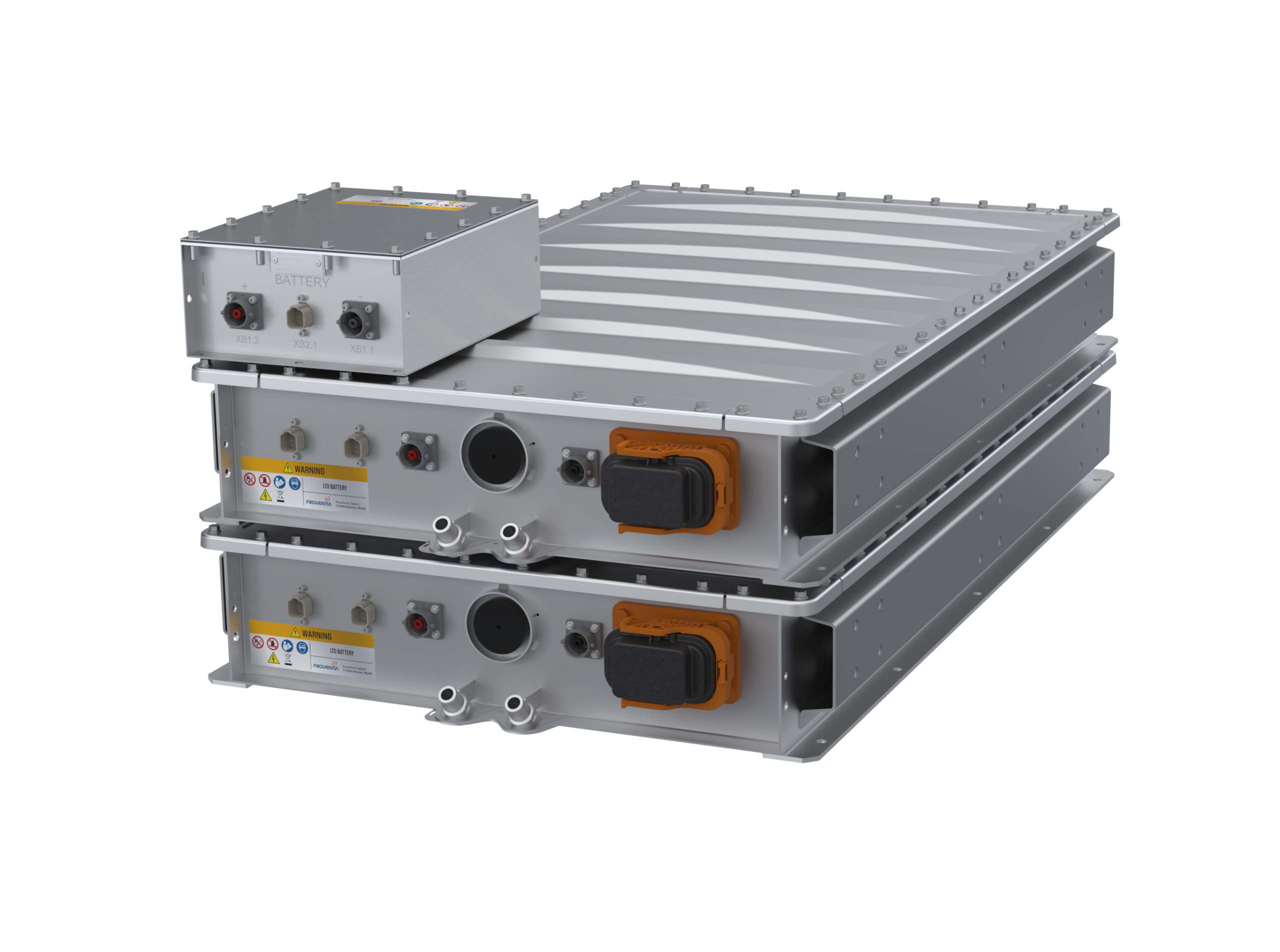

Proventia high-voltage battery with separate Battery Management Unit (BMU) and three battery packages of different sizes (with 3, 6 and 7 modules), which can be freely connected in series up to 1000V.
Electrical characteristics
| 3M | 6M | 7M | |
| Nominal Voltage (V) | 166 | 331 | 772 |
| Capacity (kWh) | 3,3 | 6,6 | 7,7 |
| Continuous power (kW) | 32 | 63 | 74 |
| Peak Power (kW) | 133 | 265 | 310 |
Physical characteristics
| 3M | 6M | 7M | |
| Width (mm) | 700 | 700 | 700 |
| Length (mm) | 635 | 1065 | 1210 |
| Height (mm) | 184 | 184 | 184 |
| Weight (kg) | 115 | 205 | 235 |
LOW-voltage LTO battery systems
Our low-voltage batteries seamlessly integrate into machines with their compact, lightweight, yet robust structure. They improve fuel efficiency and reduce CO2 emissions, making the low-voltage batteries an easy choice for off-road machinery applications.
Applications for low-voltage batteries
Mild hybrids
The 48V electrical system is the industry standard for mild hybrid cars. For the creation of mild hybrid off-road machines, we provide you with a similar tailored low-voltage system. Such a system is, for example, the Proventia ePRO48.
Start-Stop Systems
The Start-Stop system reduces engine idling, thereby decreasing fuel consumption and emissions. A low-voltage battery maintains the operation of the machine’s electrical systems during stops.
Example of LOW-voltage systems:
| 48 V/ 0.9 kWh/ 37 kW peak power | |
| Wide operational temperature window | -30…60°C |
| Length x Width x Height* | 450 x 300 x 150 mm |
| Weight* | c. 27 kg |
Proventia
Battery offering
We specialize in developing and manufacturing modular customizable lithium-ion battery packs tailored for the non-road machine industry and other operators with similar needs.
Read more
Proventia
Energy batteries
Our Energy Batteries utilize safe and environmentally friendly Lithium Iron Phosphate (LFP) technology.
Read moreContact us
Interested in our products and services? Give us a call or send an email!
